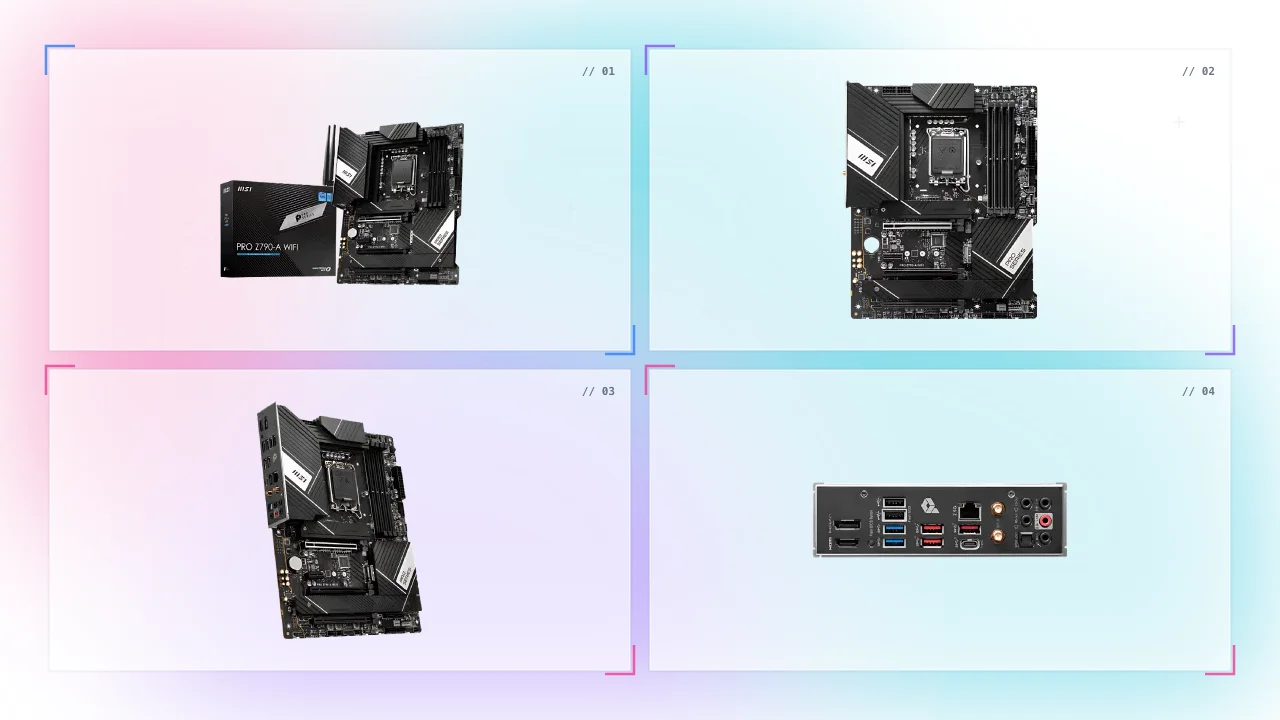

Msi Pro Z790-A in Bahrain Buy Motherboard

Are you a professional looking for a high-performance motherboard that can handle heavy loads and improve your productivity?

You may be experiencing frustrating slow-downs and overheating issues with your current motherboard, hindering your ability to efficiently multitask and work at your best.

The MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard in Bahrain is tailored to professionals, featuring an extended heatsink and heavy plated VRM heatsink to maintain performance at heavy loads. It is optimized for water cooling and supports the latest DDR5 memory for world-class performance.

Msi Pro Z790-A WiFi DDR5 Features

High-Performance Motherboard for Professionals

The MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard in Bahrain is a high-performance motherboard designed for professionals looking to improve their productivity and efficiency.

• Extended heatsink for improved heat dissipation
• Heavy plated VRM heatsink to maintain performance at heavy loads
• Optimized for water cooling for better temperature control
• Lightning Gen 5 PCI-E for increased bandwidth
• Latest DDR5 memory with SMT slot for world-class performance
• MSI Memory Boost technology for enhanced memory performance
• High-bandwidth and low-latency network for faster data transfer
• Designed for easy and safe installation

Upgrade your productivity and efficiency with the MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard in Bahrain today!

Are you a professional looking for a high-performance motherboard to improve your productivity and efficiency?

The MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard in Bahrain is tailored to professionals and features an extended heatsink, heavy plated VRM heatsink, optimized water cooling, and the latest DDR5 memory with MSI Memory Boost technology.

With lightning Gen 5 PCI-E for increased bandwidth and a high-bandwidth and low-latency network, this motherboard is designed to handle heavy loads and boost your performance.

Msi Pro Z790-A WiFi DDR5 Specs

Detailed Specifications of MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard

Check out the detailed specifications of the MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard in Bahrain, including its dimensions, socket type, memory support, and more.

CHIPSET	INTEL Z790
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	ATX 243.84mmx304.8mm

FAQ

Frequently Asked Questions about the MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard in Bahrain

What is the socket type of the MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard?

The socket type of this motherboard is LGA 1700.

What is the maximum RAM capacity supported by this motherboard?

The MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard supports up to 128GB of DDR5 RAM.

Does this motherboard support water cooling?

Yes, this motherboard is optimized for water cooling and features a dedicated water pump PIN header.

What is the size of this motherboard?

The MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard is a standard ATX size, measuring 12 x 9.6 inches.

What is the warranty period for this motherboard?

The MSI Pro Z790-A WiFi DDR5 LGA 1700 Intel ATX Motherboard comes with a limited 3-year warranty.
