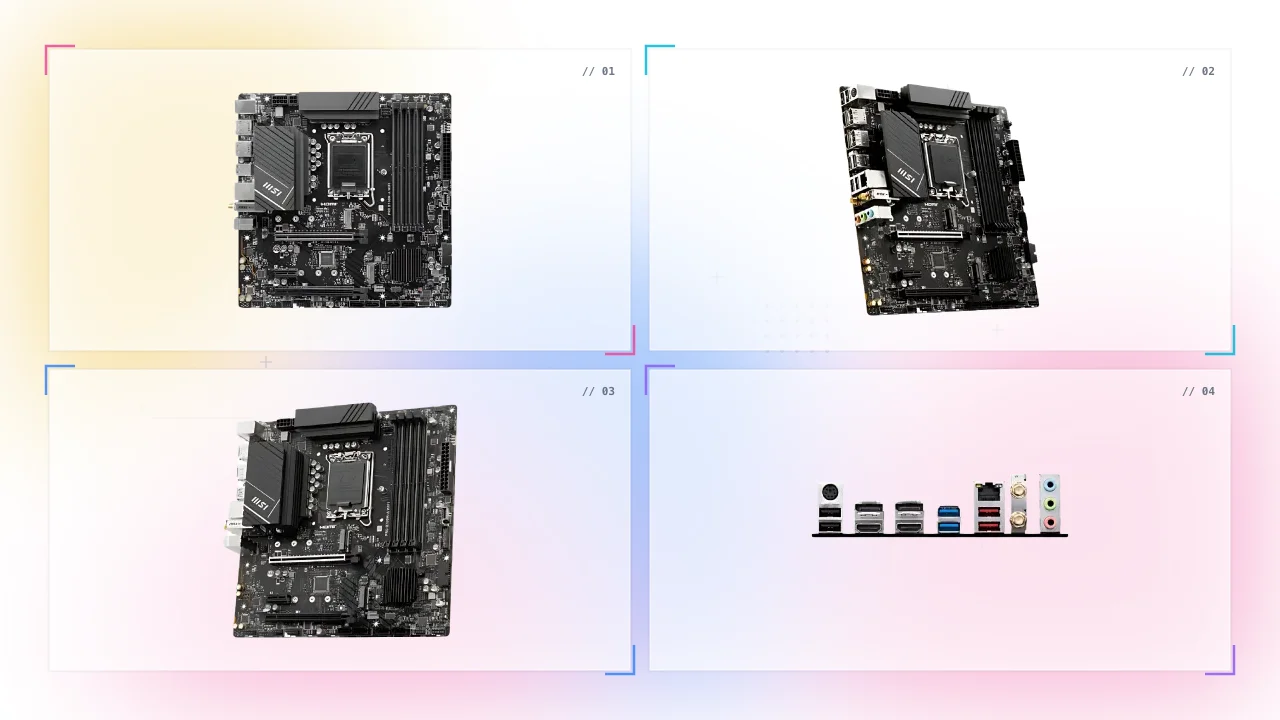

Msi Pro B760M-A in United Arab Emirates Buy Best Gaming Motherboard

Are you struggling with slow loading times and an underperforming CPU on your current motherboard?

It can be frustrating to have a slow and laggy computer, especially when you're trying to work or play games. Slow loading times and a lack of processing power can hold you back from achieving your goals and getting things done efficiently.

Upgrade to the MSI Pro B760M-A in United Arab Emirates WiFi Intel LGA 1700 DDR4 mATX Motherboard, which features Core Boost technology for faster and undistorted current delivery to the CPU, support for the latest storage standards for ultra-fast storage devices, and MSI Memory Boost technology for world-class memory performance. Plus, the Mystic Light Extension pin header allows for easy control of additional RGB peripherals, adding more color and style to your setup.

Msi Pro B760M-A WiFi Intel LGA 1700 Features

High-Performance Motherboard for Faster Computing

Upgrade your computer with the MSI Pro B760M-A WiFi motherboard in United Arab Emirates for faster computing, support for the latest storage standards, and an easy way to control additional RGB peripherals.

Core Boost technology for faster and undistorted current delivery to the CPU
Support for the latest storage standards for ultra-fast storage devices
MSI Memory Boost technology for world-class memory performance
Mystic Light Extension pin header for easy control of additional RGB peripherals
Intel LGA 1700 socket for compatibility with the latest CPUs
Dual M.2 slots for high-speed SSDs
Onboard Wi-Fi and Bluetooth for wireless connectivity
Premium layout design for optimal performance and reliability

Upgrade your computer with the MSI Pro B760M-A WiFi motherboard in United Arab Emirates for faster computing, support for the latest storage standards, and an easy way to control additional RGB peripherals.

Are you tired of slow loading times and an underperforming CPU on your current motherboard?

Upgrade to the MSI Pro B760M-A WiFi Intel LGA 1700 DDR4 mATX Motherboard in United Arab Emirates, which features Core Boost technology for faster and undistorted current delivery to the CPU, support for the latest storage standards for ultra-fast storage devices, and MSI Memory Boost technology for world-class memory performance. Plus, the Mystic Light Extension pin header allows for easy control of additional RGB peripherals, adding more color and style to your setup.

With faster computing and support for the latest storage standards, the MSI Pro B760M-A WiFi motherboard in United Arab Emirates can help you achieve your goals and get things done efficiently. Plus, with the easy control of additional RGB peripherals, you can add more color and style to your setup.

Msi Pro B760M-A WiFi Intel LGA 1700 Specs

Detailed Specifications for the MSI Pro B760M-A WiFi Motherboard

Get detailed specifications for the MSI Pro B760M-A in United Arab Emirates WiFi motherboard, including information on the Intel LGA 1700 socket, storage options, and connectivity features.

CHIPSET	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS	2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	mATX 243.84mmx243.84mm

Video Experience

View on YouTube

FAQ

Frequently Asked Questions About the MSI Pro B760M-A WiFi Motherboard

What CPUs are compatible with the MSI Pro B760M-A WiFi motherboard?

The MSI Pro B760M-A WiFi motherboard is compatible with Intel LGA 1700 socket CPUs, including the latest 12th generation Intel Core processors.

Does the MSI Pro B760M-A WiFi motherboard support DDR5 memory?

No, the MSI Pro B760M-A WiFi motherboard supports DDR4 memory.

How many M.2 slots does the MSI Pro B760M-A WiFi motherboard have?

The MSI Pro B760M-A WiFi motherboard has two M.2 slots for high-speed SSDs.

Does the MSI Pro B760M-A WiFi motherboard have onboard Wi-Fi and Bluetooth?

Yes, the MSI Pro B760M-A WiFi motherboard has onboard Wi-Fi and Bluetooth for wireless connectivity.

What is the Mystic Light Extension pin header on the MSI Pro B760M-A WiFi motherboard used for?

The Mystic Light Extension pin header allows for an easy way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
