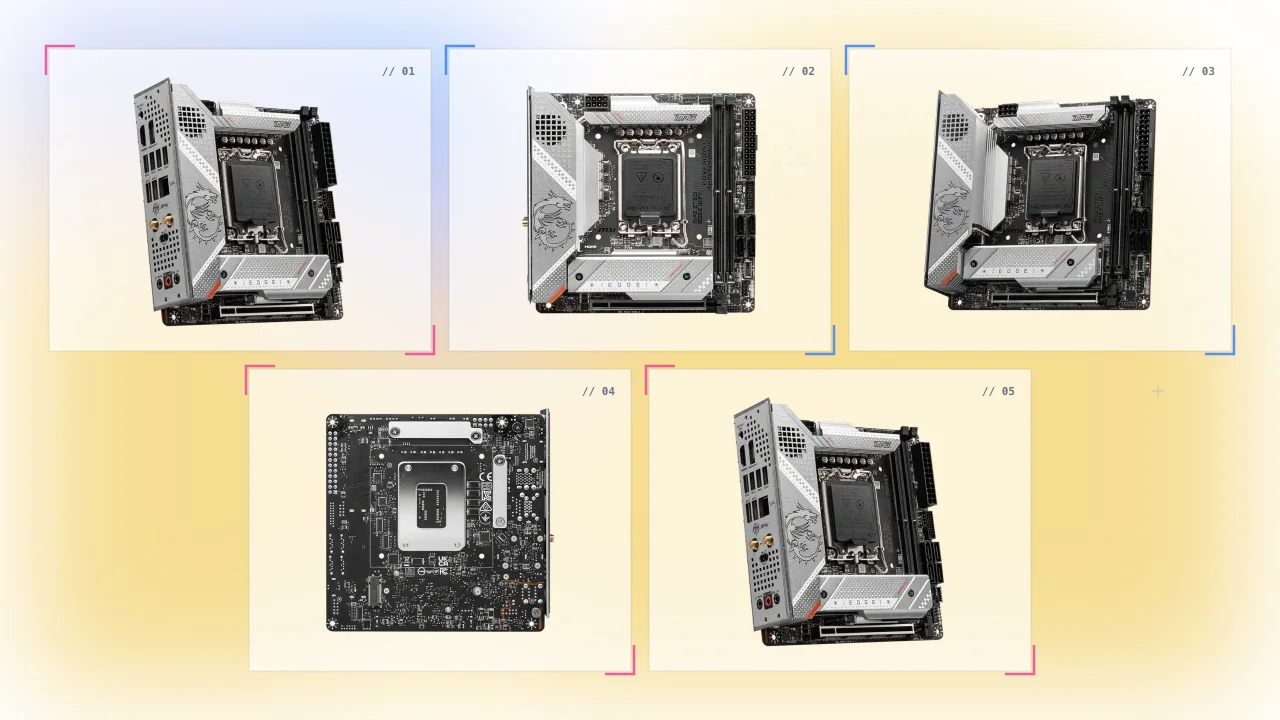

Msi MPG Z790i Edge WiFi LGA Buy ITX Motherboard in United Arab Emirates

Expect the unexpected since the Msi MPG Z790i Edge WiFi LGA in United Arab Emirates that arrives to you and will add new chapters to history.

Silver and white color palette is used by MSI MPG Z790I EDGE WIFI LGA to display various personalities and identities. It is not only strong, but also fashionable.

The MPG Z790I EDGE WIFI produces stylish goods by exhibiting incredibly distinctive fashions and demonstrating a haughty attitude toward the challenge of the gaming industry. The MPG Z790I is the pinnacle of gaming fashion with its exceptional performance and flair.

Msi MPG Z790i Edge WiFi LGA Features

Their performance stunned the gaming community by making undertakings that seemed unachievable doable.

Even the most advanced CPUs can operate at full speed thanks to the Extended Heatsink's expansion of the heat dissipation surface. Additionally, its active cooling system is prepared to deliver optimal performance.

Frozr Heatsink and Heat-pipe
MOSFET Baseplate
Latest Wi-Fi 6E
Lightning USB 20G
Direct 10+1+1 VRM Power
Pump Fan Support
Lightning Gen 5 PCI-E
7W/mK MOSFET Thermal Pad

Be prepared with your computer. The active cooling system is prepared to operate at its peak efficiency.

Do you find lag in video games to be an annoyance? then go forward at the rate you like. The MPG Z790I EDGE WIFI gives you everything

All cores run at peak performance thanks to additional choke thermal pads and high-quality 7W/mK MOSFET thermal pads. Additionally, it makes M.2 SSDs perform quicker by minimising throttling and keeping them secure.

On MSI MPG Z790I EDGE WIFI, you may use a streamlined graphical interface in the BIOS and software to control the speeds and temperatures of all of your system and CPU fans. Additionally, you may select up to 4 temperature objectives, which will automatically change the fan speeds. Using MSI AI ENGINE, the CPU and GPU temperatures are detected, and the system fans' fan duty is automatically adjusted to the appropriate level.

Msi MPG Z790i Edge WiFi LGA Specs

The specifications themselves have created a marvel that captures every facet of the contemporary gaming era.

Developed to support the most well-liked All-In-One & specialiZed water cooling solutions available.You have complete control over the water pump speed thanks to the 3 amp PIN header designed specifically for the purpose.Installation is simple, safe, and possible with a perfect fit thanks to a clearly indicated keep-out-zone.

CHIPSET	INTEL Z790
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	2x DDR5, Maximum Memory Capacity 64GB Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
STORAGE	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
USB	2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front)
LAN	Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen 2x2 Type C
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Display Port 2.5G LAN USB 3.2 Gen 2x2 20Gbps (Type-C) Audio Connectors Clear CMOS HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	Mini-ITX 170mmx170mm

Video Experience

View on YouTube

FAQ

Here something you can clear for some qustions.

Does MSI MPG Z790I EDGE WIFI LGA support DDR5?

Yes, it supports DDR5 Memory, up to 8000+(OC) MHz.

Is there any advanced thermal solution that is supported in MSI MPG Z790I EDGE WIFI LGA in United Arab Emirates?

High performance system and non-stop gaming experience are designed with an expanded heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, extra choke thermal pads, and M.2 Shield Frozr.

How much better is MSI MPG Z790I EDGE WIFI's audio system?

For the most immersive gaming experience, AUDIO BOOST 5 rewards your ears with studio-grade sound quality.

Is MSI MPG Z790I EDGE WIFI LGA in United Arab Emirates provide a fast network connection?

An upgraded network solution for business and multimedia use that uses 2.5G LAN and Intel Wi-Fi 6E provides a fast, reliable, and secure network connection.
