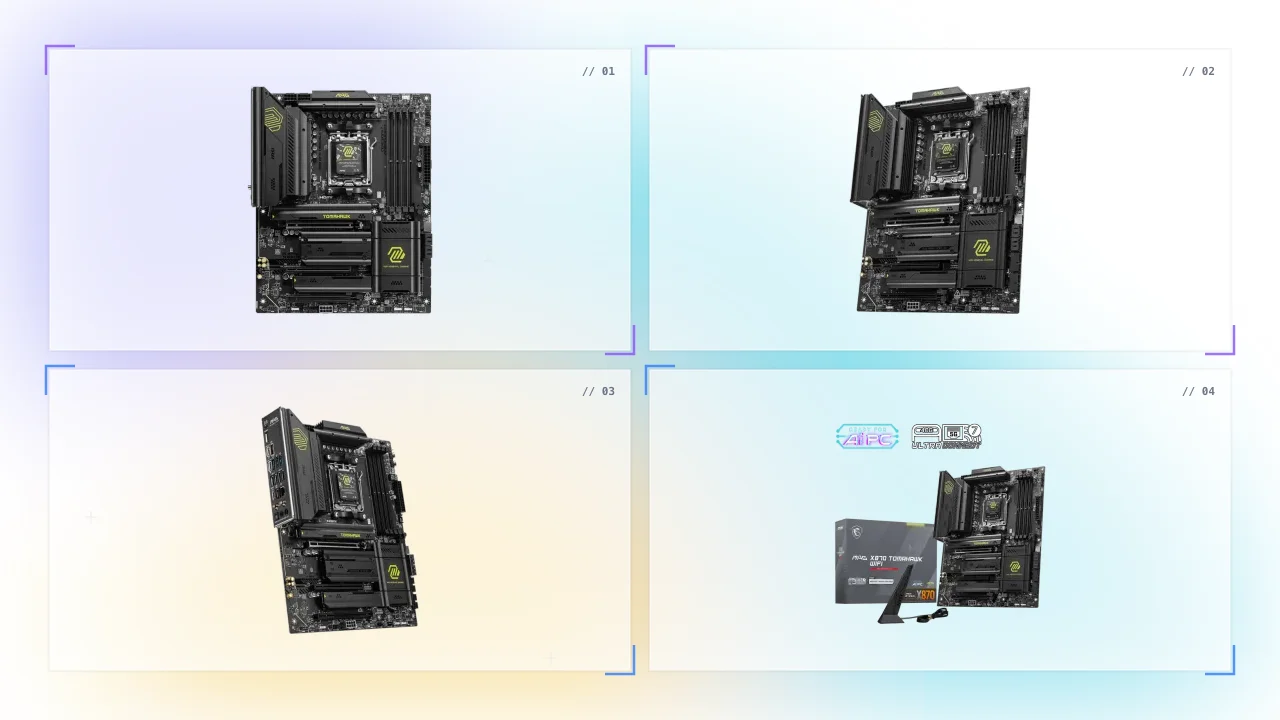

MSI Mag X870 Tomahawk Wifi Gaming Motherboard in United Arab Emirates
Struggling with slow, outdated hardware limiting your gaming performance?
Nothing is more frustrating than lagging behind during intense gameplay or missing out on smooth multitasking due to inferior technology.
Upgrade to the MSI MAG X870 Tomahawk WiFi motherboard in {United Arab Emirates}, offering AMD Ryzen™ 9000 Series support, DDR5 memory speeds up to 8400+ MT/s, and PCIe 5.0 compatibility. This gaming powerhouse features advanced connectivity, onboard Wi-Fi 7, and blazing fast M.2 slots for seamless gaming and productivity performance. Experience next-gen graphics and ultra-smooth 4K display output with HDMI™ 2.1 and DisplayPort 1.4. Plus, customize your setup with multi-GPU support and vibrant RGB lighting.
MSI Mag X870 Tomahawk
Wifi Gaming Motherboard Features
Discover the cutting-edge features of the MSI MAG X870 Tomahawk WiFi motherboard, supporting AMD Ryzen™ 9000 Series, PCIe 5.0, and DDR5 memory for ultimate gaming performance.
- Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
- Up to 256GB DDR5 RAM with speeds over 8400+ MT/s
- 3x PCI-E x16 slots for high-speed data transmission
- 4x M.2 slots, with PCIe 5.0 and 4.0 support for blazing fast storage
- Realtek 5G LAN and Wi-Fi 7 for high-speed connectivity
- 7.1-Channel USB High-Performance Audio with S/PDIF output
- Supports AMD EXPO™ for easy memory overclocking
- Comprehensive RGB lighting control with EZ Debug LEDs
Upgrade your gaming rig today with MSI MAG X870 Tomahawk!
Is your current motherboard limiting your high-end gaming ambitions?
When you push your system to its limits, inadequate performance can cause bottlenecks, ruin immersion, and result in frustrating delays during high-stakes moments.
Step up your game with the MSI MAG X870 Tomahawk WiFi motherboard in {United Arab Emirates}. It supports the latest AMD Ryzen™ 9000 Series processors, DDR5 memory up to 8400+ MT/s, and PCIe 5.0, providing unmatched speed and stability. Equipped with Wi-Fi 7, 5G LAN, and advanced audio, this motherboard enhances connectivity, responsiveness, and overall gaming experience. Plus, its multiple M.2 slots ensure ultra-fast data transfer, while its sleek RGB lighting adds a stylish touch to your build.
MSI Mag X870 Tomahawk
Wifi Gaming Motherboard Specs
Review the full technical specifications of the MSI MAG X870 Tomahawk WiFi motherboard, offering advanced connectivity, high-speed memory, and powerful performance for serious gamers.
| Chipset | AMD X870 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 & M2_2 slots • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports *** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions |
| Multi-GPU | AMD MULTI-GPU Support |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| LAN | Realtek® 8126-CG 5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED 1x EZ Digit Debug LED |
| BACK PANEL PORTS | Quick Installation Guide European Union Regulatory Notice Shout-Out Flyer 2 x SATA Cables EZ M.2 Clip II EZ M.2 Clip II Remover M.2 Plate Screw USB Drive Cable Sticker EZ Wi-Fi Antenna 1 to 3 EZ Conn-Cable (V2) EZ Front Panel Cable |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| BOX CONTENT | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A |
| PCB Info | ATX 304.8mmx243.84mm |
FAQ
Frequently Asked Questions about MSI Mag X870 Tomahawk Wifi Gaming Motherboard.
What processors are compatible with the MSI MAG X870 Tomahawk WiFi?
This motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
Can I use DDR5 RAM with this motherboard?
Yes, it supports DDR5 RAM with speeds up to 8400+ MT/s for maximum performance.
Does the motherboard support Wi-Fi and Bluetooth?
Yes, it features Wi-Fi 7 and Bluetooth 5.4, providing high-speed wireless connectivity.
How many M.2 slots does the motherboard have?
The MSI MAG X870 Tomahawk WiFi has 4x M.2 slots for ultra-fast NVMe storage options.
Is the motherboard suitable for multi-GPU setups?
Yes, it supports AMD MULTI-GPU, allowing for seamless integration of multiple graphics cards.
