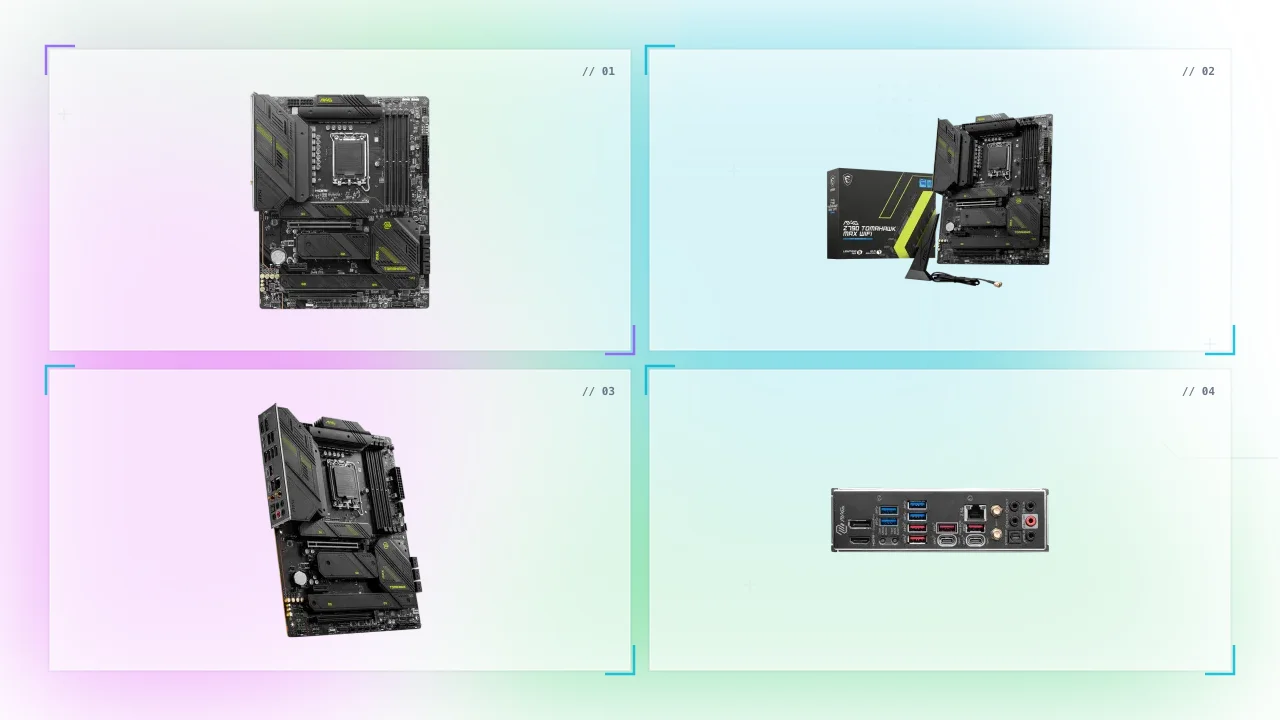

MSI MAG Z790 TomaHawk Max WiFi Intel in United Arab Emirates
Modern system builders face constraints in finding motherboards compatible with the latest processor technologies. The dilemma arises when they aim to integrate Intel® Core™ 14th/13th/12th Gen Processors, Pentium® Gold, and Celeron® Processors into their systems, limiting their upgrade possibilities.
Builders restricted by the scarcity of motherboards that accommodate the latest CPU technologies. This limitation stifles their ability to unlock the full potential of newer processors, hindering their capacity for high-performance computing, multitasking, and advanced functionalities.
MSI MAG Z790 TomaHawk Max WiFi Intel DDR5 Motherboard in United Arab Emirates, a comprehensive solution addressing the compatibility conundrum. With support for Intel® Core™ 14th/13th/12th Gen Processors, Pentium® Gold, and Celeron® Processors in the LGA1700 socket, this motherboard opens doors for versatile system upgrades. Offering 192GB DDR5 UDIMM support with overclocking frequencies up to 7800+ MHz, it unlocks a realm of possibilities for seamless integration, high-speed processing, and superior multitasking capabilities. This solution ensures builders can harness the maximum potential of their systems with newer CPUs, enhancing their overall computing experiences.
MSI MAG Z790 TomaHawk Max WiFi
Intel DDR5 Motherboard Features
Explore the array of capabilities offered by the MSI MAG Z790 TomaHawk Max WiFi Intel DDR5 Motherboard. Uncover the cutting-edge functionalities that set a new standard in high-performance computing.
- Supports Intel® Core™ 14th/13th/12th Gen Processors
- Maximum memory capacity of 192GB with DDR5 UDIMM support
- Overclocking frequencies up to 7800+ MHz
- Multiple M.2 slots for versatile storage options
- Comprehensive USB connectivity, including USB 3.2 Gen2x2
- Intel® 2.5Gbps LAN and Wi-Fi 7 support
- Supports RAID 0, RAID 1, RAID 5, and RAID 10 for storage devices
- Back panel ports include Display Port, HDMI™, USB 3.2 Gen 2x2 Type-C
Purchase now and experience the next level of high-performance computing.
Builders often face limitations in connectivity and storage options when selecting suitable motherboards for their builds. The scarcity of M.2 slots, inadequate SATA connections, and limited USB ports confine their capacity for versatile storage expansions and peripheral device connections.
Plight of users constrained by the limited connectivity options of their motherboards. Insufficient M.2 slots and SATA connections curb their storage expansion possibilities, while the scarcity of USB ports inhibits their ability to connect various peripherals for a well-rounded system.
MSI MAG Z790 TomaHawk Max WiFi Intel DDR5 Motherboard in United Arab Emirates rectifies this issue, offering an array of connectivity options. With four M.2 slots, eight SATA 6G connections, and a comprehensive range of USB ports, users can explore expanded storage options and connect multiple peripherals for a versatile computing experience. This empowers users to tailor their systems, accommodating diverse storage needs and multiple devices, ultimately enriching their overall computing experiences.
MSI MAG Z790 TomaHawk Max WiFi
Intel DDR5 Motherboard Specs
Dive into the detailed specs of the MSI MAG Z790 TomaHawk Max WiFi Intel DDR5 Motherboard. Uncover the technical specifications and connectivity options, aiding informed decisions for your next system build.
| CHIPSET | INTEL Z790 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| MEMORY |
4x DDR5 UDIMM, Maximum Memory Capacity 192GB |
| ONBOARD GRAPHICS |
1x HDMI™ |
| SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| STORAGE |
4x M.2 |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 7 |
| AUDIO | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | Display Port USB 3.2 Gen 1 5 Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Clear CMOS Flash BIOS USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | ATX 243.84mmx304.8mm |
FAQ
Frequently Asked Questions about MSI MAG Z790 TomaHawk Max WiFi Intel DDR5 Motherboard.
What processors does this motherboard support?
The MSI MAG Z790 TomaHawk Max WiFi Intel DDR5 Motherboard supports Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors in the LGA 1700 socket.
What is the maximum memory capacity and supported memory for this motherboard?
This motherboard supports a maximum memory capacity of 192GB with DDR5 UDIMM support and overclocking frequencies up to 7800+ MHz.
How many M.2 slots and SATA connections does this motherboard have?
The MSI MAG Z790 TomaHawk Max WiFi includes four M.2 slots, eight SATA 6G connections, and RAID support for storage devices.
What type of LAN and wireless connectivity is available?
This motherboard features Intel® 2.5Gbps LAN and Wi-Fi 7 for enhanced network connectivity.
What are the back panel ports available on this motherboard?
The back panel includes Display Port, HDMI™, USB 3.2 Gen 2x2 Type-C, and other USB and audio connectors for versatile connectivity options.
