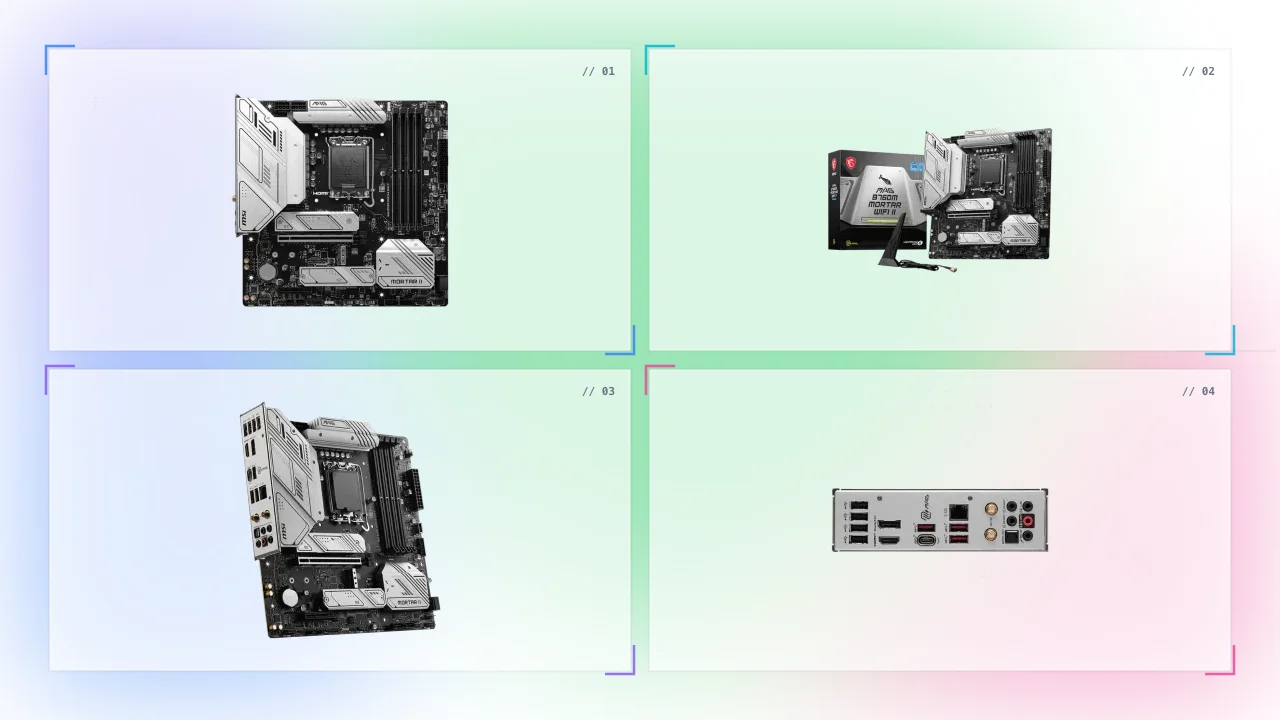

MSI MAG B760M Mortar WiFi II Intel MATX in United Arab Emirates

System builders and enthusiasts struggle with limited motherboard choices compatible with newer CPU generations. They face the challenge of finding motherboards that support Intel's latest 14th/13th/12th Gen processors, restricting their system upgrade options.

Frustration of users unable to find motherboards that adapt to the advancements in CPU technology. This limitation poses a roadblock in achieving an optimized system, hindering the potential for enhanced performance and future-proofing against upcoming innovations.

Introducing the MSI MAG B760M Mortar WiFi II Intel MATX Motherboard in United Arab Emirates, a comprehensive solution addressing the compatibility concerns. Boasting support for Intel Core processors from the 14th to the 12th Gen, alongside Pentium Gold and Celeron processors in the LGA1700 socket, this motherboard paves the way for seamless system upgrades. The extensive memory capacity of 192GB, support for DDR5 memory with overclocking frequencies up to 7800+ MHz, and multiple connectivity options ensure a versatile platform for users to build high-performance systems that cater to their needs.

MSI MAG B760M Mortar WiFi II

Intel MATX Motherboard Features

Discover its capabilities and functionalities, setting a new standard for high-performance motherboards.

• Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors
• Memory support up to 192GB with DDR5, offering overclocking frequencies up to 7800+ MHz
• Multiple M.2 slots for versatile storage options
• Comprehensive USB connectivity: USB 2.0, USB 3.2 Gen1, Gen2, and USB4 support
• Features Intel® Wi-Fi 6E and Bluetooth 5.3 support for enhanced connectivity
• Realtek® ALC897 Codec for 7.1-Channel High Definition Audio
• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
• Back panel ports include DisplayPort, HDMI™ 2.1, 2.5G LAN Port, and Wi-Fi / Bluetooth

High-performance build that suits your every need.

Users and system builders often face limitations in connectivity and expansion options when choosing a suitable motherboard. The lack of sufficient M.2 slots, limited SATA connections, and few USB ports restrict their ability to accommodate various storage options and peripheral devices.

Users who find themselves constrained by the limited connectivity options of their motherboards. Inadequate M.2 slots and SATA connections limit their storage expansion, while a scarcity of USB ports hinders their ability to connect multiple peripherals for a well-rounded system.

MSI MAG B760M Mortar WiFi II Intel MATX Motherboard in United Arab Emirates, designed to provide an extensive range of connectivity options. With three M.2 slots, four SATA connections, and a comprehensive array of USB ports ranging from USB 2.0 to USB 3.2 Gen 2x2, users can now enjoy the flexibility to expand their storage, connect various peripherals, and build a versatile system. This empowers users to create systems tailored to their specific needs, catering to storage and expansion demands while supporting a variety of devices for a well-rounded computing experience.

MSI MAG B760M Mortar WiFi II

Intel MATX Motherboard Specs

Uncover its technical aspects and connectivity options, making informed decisions for your next build.

CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
STORAGE	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth HD Audio Connectors USB 2.0 HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO	mATX 243.84mmx243.84mm

FAQ

Frequently Asked Questions about MSI MAG B760M Mortar WiFi II Intel MATX Motherboard.

What type of processors does this motherboard support?

The MSI MAG B760M Mortar WiFi II Intel MATX Motherboard supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors in the LGA1700 socket.

What is the maximum memory capacity and memory support for this motherboard?

This motherboard supports a maximum memory capacity of 192GB with DDR5, offering overclocking frequencies up to 7800+ MHz.

What are the connectivity options for storage devices on this motherboard?

The MSI MAG B760M Mortar WiFi II provides three M.2 slots, four SATA 6G ports, and RAID support for storage devices.

Does it support the latest Wi-Fi and Bluetooth technology?

Yes, it supports Intel® Wi-Fi 6E, with Bluetooth® 5.3 support offering enhanced connectivity.

What are the back panel ports available on this motherboard?

The back panel includes DisplayPort, HDMI™ 2.1, 2.5G LAN Port, Wi-Fi / Bluetooth, and USB 3.2 Gen 2x2 ports for versatile connectivity.
