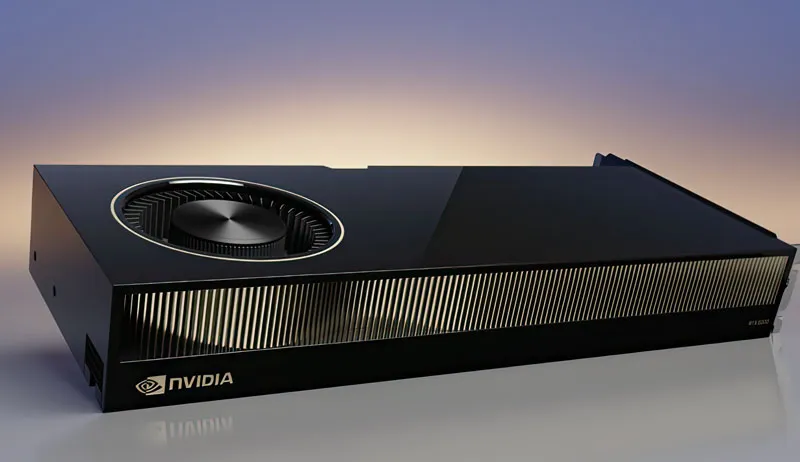

NVIDIA RTX A6000, the Fastest and most Powerful Visual Computing GPU for Desktop Workstation

The RTX A6000 was introduced by NVIDIA on October 5, 2020. The Nvidia RTX A6000 is a graphics card designed specifically to be used on professional desktop workstations. It is based on the consumer GeForce RTX 3090 GPU and offers all 10,752 FP32 ALUs that are available on the GA102 Ampere chip. The RTX A6000, which was formerly known as a Quadro card, provides licensed drivers such as CAD, DCC, medical, and visualization applications. Built on NVIDIA's Ampere architecture, the NVIDIA RTX A6000 provides everything that graphic designers, engineers, scientists, and artists require to handle the most graphics and compute-intensive tasks. The RTX A6000 features the latest generation RT Cores, Tensor Cores, and CUDA cores, which deliver unmatched performance in rendering, artificial intelligence (AI), graphics, and computing performance.

Additionally, it includes accelerated AI noise removal, which produces higher-quality output with fewer rendering steps and quicker render times. Additionally, the RTX A6000 is NVIDIA's first PCIe Gen4-compliant professional graphics card. Based on the 8 nm GA102 graphics processor, the card supports DirectX 12 Ultimate. The GA102, a graphics processor, has 28,300

a million transistors and a 628 mm2 die area. It has 336 texture mapping units. It also has 10752 shading units and 112 ROPs (render output units). Additionally included are 336 tensor cores, which speed up machine learning applications. There are also 84 acceleration cores for raytracing on the board. A 384-bit memory interface links the NVIDIA RTX A6000 graphics card to 48 GB of GDDR6 RAM. While memory operates at 2000 MHz (16 Gbps effective), the GPU runs at 1410 MHz, with an option to increase this to 1800 MHz. There are also 84 acceleration cores for raytracing on the board. It claims to deliver GPU rendering performance that is more than twice as fast as its predecessor, the Turing-based Nvidia Quadro RTX 6000, with a focus on hardware-based ray tracing. A 384-bit memory interface links the NVIDIA RTX A6000 and 48 GB of GDDR6 RAM. Memory runs at 2000 MHz (16 Gbps effective), while the GPU operates at 1410 MHz with an increasable speed of 1800 MHz. Consequently, it also provides a considerable increase for 3D graphics and VR. A dual-slot card with a maximum power draw of 300 W, the NVIDIA RTX A6000 is powered by an 8-pin EPS power connector. Among the outputs for displays are 4x DisplayPort 1.4a. PCI-Express 4.0 x16 is used to link the RTX A6000 to the rest of the hardware. The card has a dual-slot cooling system and measures 267 mm long by 112 mm wide. At the time of its launch, it cost $4649 USD.

Technical Specifications:

Now Let's have a comprehensive specifications walkthrough of the RTX A6000.

Graphics Processor

RTX A6000 is based on GPU named GA102. Ampere architecture is used in RTX A6000. It is an 8 nm process with a die area of 628 mm² and 28,300 million transistors used in it.

Board Design

RTX A6000 is a dual-slot card with a board number PG133 SKU 500.It receives power from an 8-pin EPS power connector and draws 300 W at max. The dimensions of the RTX A6000 are 267 mm in length and 112 mm in width. For displaying outputs, RTX A6000 has 4x DisplayPorts.

Clock Speeds

The GPU (Graphics processing unit) is working at a frequency of 1410 MHz, which can be increased up to 1800 MHz. The GPU has memory working at 2000 MHz 16 Gbps effective.

Memory

RTX A6000's 384-bit memory interface connects 48 GB GDDR6 memory at a bandwidth of 768.0 GB/s.

Theoretical Performance

RTX A6000 renders 201 pixels per second at 201.6 GPixel/s. RTX A6000 textures at 604.8 Texel/s. RTX A6000 has an FP16 (half) performance of 38.71 TFLOPS, FP32 (float) performance of 38.71 TFLOPS, and FP64 (double) performance of 1,210 GFLOPS.



Is Nvidia RTX A6000 good for gaming?



Even though the Nvidia RTX A6000 has a marginally superior GPU configuration than the GeForce RTX 3090, it will not outperform the 3090 gaming laptop in gaming due to the GDDR6X memory of 3090, and the Nvidia RTX A6000 uses slower memory and has a memory bandwidth of 768 GB/s, which is 18% lower than the consumer graphics card having a memory bandwidth of 936GB/s.

Epilogue

The Nvidia RTX A6000 is a graphics card designed for desktop workstations. It is the Fastest and most Powerful Visual Computing GPU for Desktop workstations. Nvidia worked much in hardware-based ray tracing. Evidently, with the tremendous increase in GPU horsepower compared to its predecessor, it's fairly astonishing to assume it has managed to double GPU rendering performance, generation on generation. The 64-core AMD Ryzen Threadripper CPU has intensified GPU-CPU competition in rendering. NVIDIA's first PCIe Gen4 professional graphics card is the A6000. The 8 nm GA102 GPU supports DirectX 12 Ultimate. With 28,300 million transistors and a 628 mm2 device size, the GA102 graphics processor is large. 336 texture mapping units. 112 ROPs, 10752 shading units (render output units). Three hundred thirty-six tensor cores accelerate machine learning.
