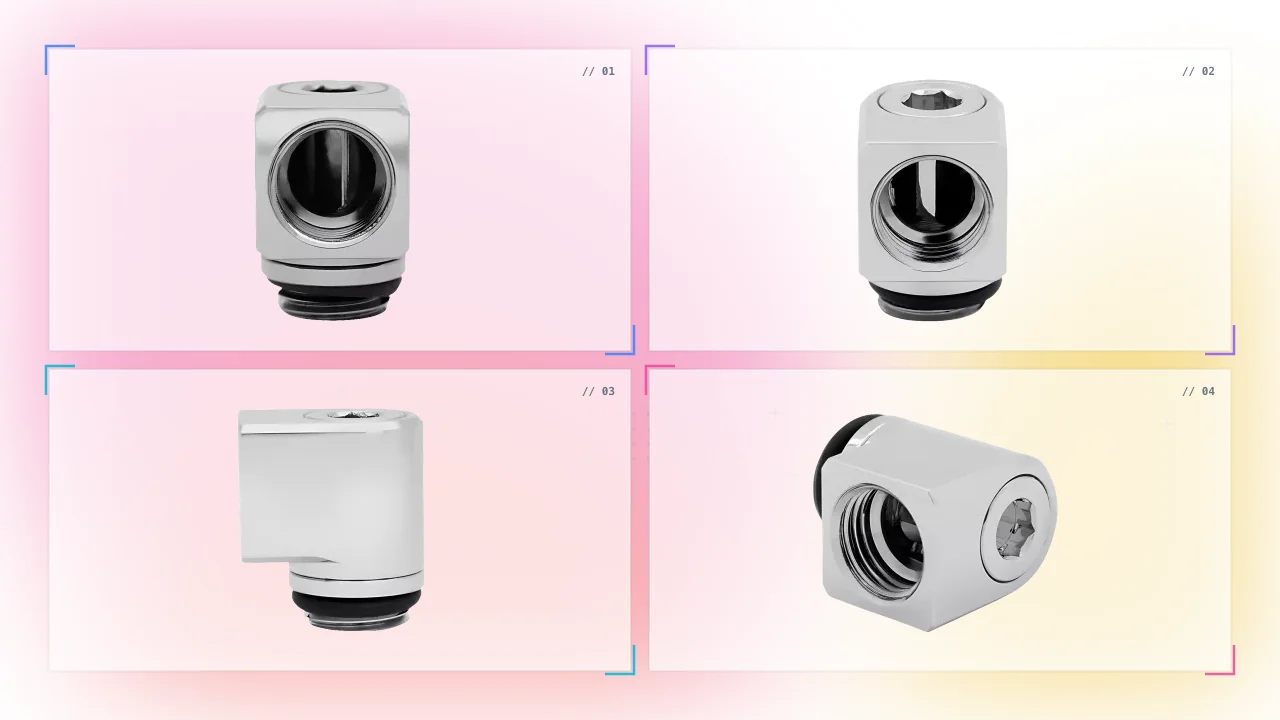

EK-Quantum Torque Micro Rotary 90° Nickel in United Arab Emirates

Are you struggling to make tight 90° turns in your small form factor (SFF) builds due to limited space and installation height?

Conventional fittings are often too tall and bulky for SFF builds, making it challenging to achieve the desired bends and routing in cramped spaces. The lack of suitable options can restrict your creativity and hinder the efficiency of your water cooling setup.

Introducing the EK-Quantum Torque Micro Rotary 90° Nickel in United Arab Emirates. With an impressively low installed height of just 21mm, this fitting provides a compact solution for making tight turns in SFF builds. It is 10mm shorter than standard 90° angled fittings, allowing it to fit into the most challenging spaces. CNC-machined from solid brass and protected with Nickel plating, it ensures durability and corrosion resistance. The fully rotatable joint and secure sealing with high-quality O-rings enable flexible and reliable water flow.

EK-Quantum Torque

Micro Rotary 90° Nickel Features

Explore the exceptional features of the EK-Quantum Torque Micro Rotary 90° Nickel. From its compact design for SFF builds to its durable brass construction and easy installation, it offers optimal performance in tight spaces.

• EK-Quantum Torque Micro Rotary adapter fittings
• Enables a simple 90° turn in minimal space
• Installed height of only 21mm
• Perfect for small form factor (SFF) builds
• CNC-machined from solid brass
• Nickel-plated for protection against corrosion
• Permanently assembled and sealed with high-quality rubber O-rings
• Secured with a 6mm Allen key for easy installation.

Elevate your SFF builds with the EK-Quantum Torque Micro Rotary 90° Nickel and conquer the space limitations with ease.

When it comes to small form factor (SFF) builds, making tight 90° turns without sacrificing space can be challenging.

Conventional fittings are often too tall and bulky, limiting your options and hindering the flexibility of your SFF build. The lack of knurling further complicates the installation process.

EK-Quantum Torque Micro Rotary 90° Nickel in United Arab Emirates adapter fitting. With an impressively low installed height of just 21mm, it allows you to achieve a 90° turn in the tightest spaces. Crafted from solid brass and protected with Nickel plating, it offers durability and corrosion resistance. The use of a 6mm Allen key secures it in place, and its rotatable body provides ease of installation.

EK-Quantum Torque

Micro Rotary 90° Nickel Specs

Get detailed specifications of the EK-Quantum Torque Micro Rotary 90° Nickel. Explore its material, finish, thread dimensions, installed height, and sealing mechanism for a comprehensive understanding of its technical capabilities.

Technical specification:

- Material: Brass

- Finish: Nickel

- Threads:

* G1/4" BSP; 4,5mm male thread length

* G1/4" BSP, 5mm female thread length

- The outer diameter: 16.5mm

- Installed height: 20,75mm

- Sealed with high-quality o-ring

FAQ

Frequently Asked Questions about EK-Quantum Torque Micro Rotary 90° Nickel.

Can the EK-Quantum Torque Micro Rotary 90° Nickel be used in other fittings?

No, the EK-Quantum Torque Micro Rotary 90° Nickel is designed specifically for its intended use and may not be compatible with other fittings.

What is the installed height of the EK-Quantum Torque Micro Rotary 90° Nickel?

The installed height of the EK-Quantum Torque Micro Rotary 90° Nickel is only 21mm, making it ideal for compact builds with limited space.

Is the EK-Quantum Torque Micro Rotary 90° Nickel resistant to corrosion?

Yes, the EK-Quantum Torque Micro Rotary 90° Nickel is crafted from solid brass and protected with Nickel plating, ensuring excellent corrosion resistance.

Can the body of the fitting rotate in both directions?

Yes, once secured in place with the 6mm Allen key, the body of the EK-Quantum Torque Micro Rotary 90° Nickel can freely rotate in either direction.

What type of threads does the EK-Quantum Torque Micro Rotary 90° Nickel feature?

The EK-Quantum Torque Micro Rotary 90° Nickel has G1/4" BSP threads, with a 4.5mm male thread length and a 5mm female thread length.
