Msi Pro Z790-P in Qatar Buy WiFi DDR4 ATX Motherboard

Written byMidhun Kallayil Madhavan
Published onJuly 26, 2022

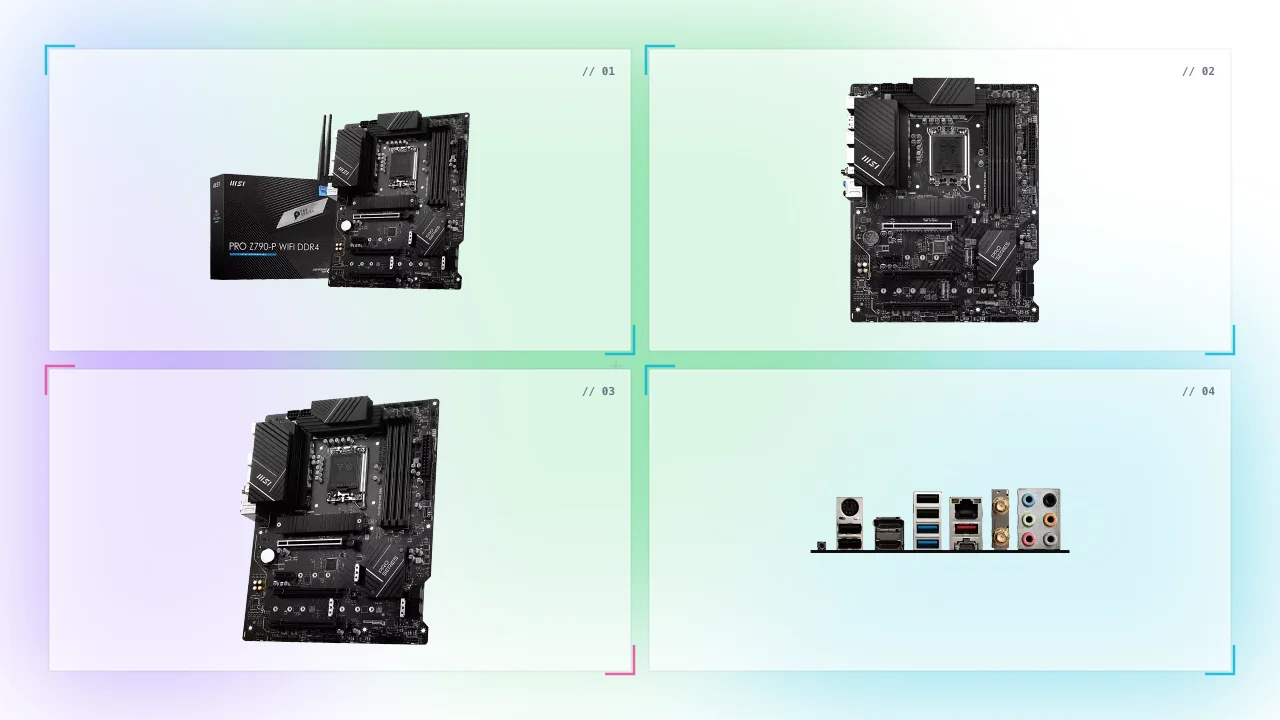

Msi Pro Z790-P in Qatar Buy WiFi DDR4 ATX Motherboard

Are you tired of using a slow and outdated motherboard that can't keep up with your demanding work or gaming requirements?

A slow motherboard can cause frustratingly slow load times, decreased productivity, and a less than optimal gaming experience. Don't let a subpar motherboard hold you back from achieving your goals.

Upgrade to the Msi Pro Z790-P in Qatar WiFi DDR4 ATX Motherboard. This high-performance motherboard features Lightning Gen 5 PCIe 5.0 for fast transfer speeds, a 2.5 Gigabit Ethernet for fast networking, and a built-in USB 3.2 Gen 2x2 port for lightning-fast data transmission. Additionally, it boasts an extended PWM heat sink and an M.2 Shield FROZR thermal solution to keep your system running smoothly even under heavy loads.

Msi Pro Z790-P WiFi DDR4 ATX Motherboard Features

Exploring the Dynamic Features of Power and Performance

With a range of dynamic features that are designed to boost performance and provide seamless connectivity, this motherboard offers users an unparalleled computing experience

  • LGA 1700 Socket supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.
  • Intel Z790 Chipset for optimal performance.
  • Lightning Gen 5 PCIe 5.0 solution with up to 128 GB/s bandwidth.
  • 2.5 Gigabit Ethernet for fast networking.
  • USB 3.2 Gen 2x2 port offers up to 20 Gb/s transmission speed.
  • M.2 Shield FROZR thermal solution to reduce throttling.
  • Extended PWM heat sink and enhanced circuit design for high-end processors.
  • Built-in M.2 Shield FROZR to keep M.2 SSDs safe and prevent throttling.
Upgrade your system today and experience lightning-fast performance with the Msi Pro Z790-P WiFi DDR4 ATX Motherboard in Qatar.

As a professional in Qatar, you need a high-performance motherboard to support your productivity and multitasking needs. However, with so many options available in the market, it can be difficult to find a motherboard that meets your specific requirements.

Without the right motherboard, you may face issues such as overheating, slow performance, and system crashes. This can lead to frustration, wasted time, and lost productivity. Moreover, with the ever-increasing demands of modern software and applications, it can be challenging to find a motherboard that can keep up with your needs.

MSI Pro Z790-P in Qatar WiFi DDR4 ATX Motherboard is the ideal solution for your professional needs. It comes with an Extended Heatsink that ensures efficient heat dissipation, maintaining the motherboard's performance even at heavy loads. The M.2 Shield Frozr further ensures the safety of your M.2 SSD and enhances performance. The Heavy Plated VRM Heatsink covers the upper MOS and dissipates heat effectively.

Msi Pro Z790-P in Qatar

WiFi DDR4 ATX Motherboard, Technical Specifications

Truly appreciate the capabilities of this motherboard, it's important to take a closer look at its technical specifications. This feature delves into the details.

CHIPSET INTEL Z790
CPU SUPPORT

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX
243.84mmx304.8mm
Video Experience
View on YouTube

FAQ

FAQ for Msi PRO Z790-P WiFi DDR4 Intel 12th/13th Gen ATX Motherboard

Which processors are compatible with the Msi PRO Z790-P WiFi DDR4 motherboard?

The Msi PRO Z790-P WiFi DDR4 motherboard supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.

What is the maximum RAM capacity that can be installed on the Msi PRO Z790-P WiFi DDR4 motherboard?

The Msi PRO Z790-P WiFi DDR4 motherboard supports a maximum of 128GB DDR4 RAM with a speed of 5600MHz.

How fast is the LAN on this motherboard?

This motherboard features a 2.5G LAN to deliver fast networking.

How many USB 3.2 Gen 2x2 ports does this motherboard have?

This motherboard has one built-in USB 3.2 Gen 2x2 port that offers up to 20 Gb/s transmission speed.

What is M.2 Shield Frozr?

M.2 Shield Frozr is a built-in M.2 thermal solution that keeps M.2 SSDs safe while preventing throttling and making them run faster. This motherboard has an onboard M.2 Shield Frozr.
