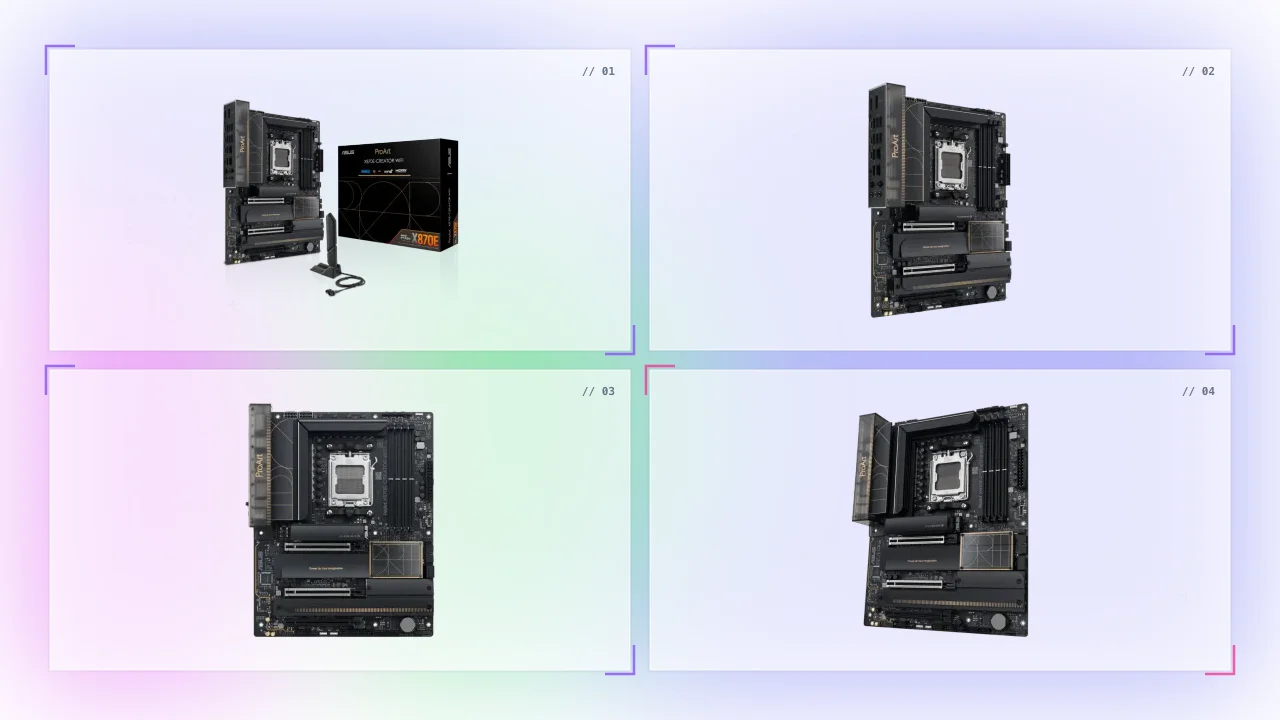

Asus ProArt X870E Creator Wifi Motherboard in Qatar
Written byPost man
Published onMay 13, 2023
Struggling to find a motherboard with high-performance connectivity and storage options?
Slow data transfer, limited memory capacity, and restricted expansion slots can severely impact your productivity and creative workflow. Inadequate connectivity can prevent you from using advanced peripherals and high-end hardware.
The Asus ProArt X870E Creator WiFi motherboard in Qatar is designed for creators, delivering cutting-edge connectivity with USB4, Wi-Fi 7, and 10Gb Ethernet. With DDR5 memory support up to 192GB, PCIe 5.0 slots, and multiple M.2 slots, it ensures your system runs efficiently and allows you to handle demanding tasks like video editing, 3D rendering, and more.
Asus ProArt X870E Creator
Wifi Motherboard Features in Qatar
Discover the Asus ProArt X870E Creator WiFi's unmatched features, including AMD Ryzen support, Wi-Fi 7, PCIe 5.0, and DDR5 memory.
- Supports AMD Ryzen 9000, 8000, and 7000 series desktop processors.
- Equipped with 4 DDR5 DIMM slots, supporting up to 192GB RAM.
- Dual PCIe 5.0 x16 slots for optimal GPU and expansion card performance.
- Wi-Fi 7 and 10Gb Ethernet for ultra-fast internet connectivity.
- Four M.2 slots with PCIe 5.0 and PCIe 4.0 support for high-speed storage.
- Comes with USB4 (40Gbps) and USB 20Gbps ports for rapid data transfer.
- Advanced cooling options with multiple fan and pump headers.
- Comprehensive software suite including ProArt Creator Hub and AI Cooling II.
Upgrade your creativity with the ProArt X870E Creator WiFi!
Need a motherboard that supports the latest Ryzen processors?
Without the right support, your high-performance CPU can’t perform to its full potential, causing bottlenecks in speed and functionality.
Unlock the full potential of your AMD Ryzen 9000, 8000, or 7000 series processors with the Asus ProArt X870E Creator WiFi in Qatar. This motherboard supports PCIe 5.0, DDR5 memory, and overclocking profiles to ensure maximum CPU efficiency and reliability. With features like USB4 and 10Gb Ethernet, you can achieve unmatched speeds and seamless multitasking.
Asus ProArt X870E Creator
Wifi Motherboard Specs
Check the detailed technical specifications of the Asus ProArt X870E Creator WiFi motherboard, including memory, connectivity, expansion slots, and more.
| Model | ProArt X870E-Creator WiFi |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. *** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * PCIEX16(G5)_2 slot shares bandwidth with M.2_2. |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 11 ports) 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports "* USB Type-C® power delivery output: max. 5V/3.0A" ** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red] , DRAM
[yellow] , VGA [white] , Boot Device [yellow green] ) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0 |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z ProArt Creator Hub CreationFirst Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| Remote Management Features | IT Management software supported - ASUS Control Center Express(ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler Documentation 1 x Quick start guide 1 x ACC Express Activation Key Card |
| Operating System | Windows® 11 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
FAQ
Frequently Asked Questions about Asus ProArt X870E Creator Wifi Motherboard.
Which processors are compatible with the Asus ProArt X870E Creator WiFi?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series desktop processors.
Does this motherboard support Wi-Fi 7?
Yes, the Asus ProArt X870E Creator WiFi features built-in 2x2 Wi-Fi 7 for fast and reliable wireless connectivity.
How much RAM does this motherboard support?
It supports up to 192GB of DDR5 memory, with speeds up to 8000+ MT/s (OC) with compatible Ryzen processors.
How many M.2 slots does the ProArt X870E Creator WiFi have?
It has four M.2 slots, supporting PCIe 5.0 and PCIe 4.0 modes for high-speed storage.
What are the key connectivity options?
It offers dual USB4 (40Gbps) ports, 10Gb Ethernet, 2.5Gb Ethernet, Wi-Fi 7, and multiple USB ports for various devices.
